Turn type variable resistance

Trimpot & # 174;Trimming Potentiometers - Multiturn

Variable resistor is applied to all kinds of electronic equipment on the circuit.Entity structure diversity and ability to meet the demands of today's manufacturing environment, provides the user can choose the best in the design application of variable resistance of elasticity.In the global Bourns variable resistor is applied to almost every electronic products.

Typical applications include linear distance measurement, Angle of the production equipment or rotate, industrial test and measurement equipment and medical equipment.

Please read onFake Bourns ® variable resistance products security problems
QPL parts materials issue listMaterials issue list
Bourns provides this product lineDesign packageFor the product application data and more specifications, please click refer to usThe database.

Trimpot ®, the Switch, and Modular ContactThe conflict minerals report:CMRT

Product labeling the symbol for the currently available, but it is not recommended for new design

Bourns ® technical documents
Mobile broadband power supply - for LTE RRU power module to adjust current or voltage (PDF, 183 k)

The Series	The data table	Rotational Life	revolutions	The fixed power	Fixed type	Resistance value range	CRV/ENR has	The temperature coefficient of	structure	MDS	Project file

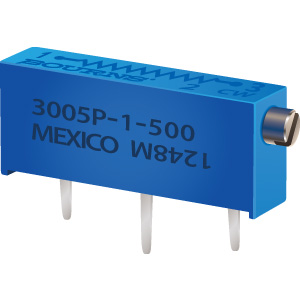

3005		200 cycles	20		Through - hole,	10 to 50 k ohms	100 ohms ENR has Max.	Plus or minus 50 PPM / ° C	sealed	3005	Downloads

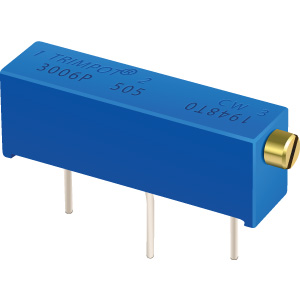

3006		200 cycles	15		Through - hole,	10 ohms to 2 megohms	1% or 2 ohms (whichever is the greater)	Plus or minus 100 PPM / ° C	sealed	3006 (10 to 200 ohms) 3006, 250 to 50 k ohms) 3006 (100 k to 2 m ohms)	Downloads

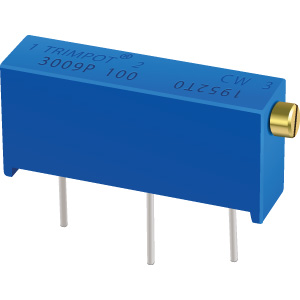

3009		200 cycles		0.75 watts	Through - hole,	10 ohms to 2 megohms	1% or 1 ohm (whichever is the greater)		sealed	3009 (10 to 200 ohms) 3009, 250 to 50 k ohms) 3009 (100 k to 2 m ohms)	Downloads

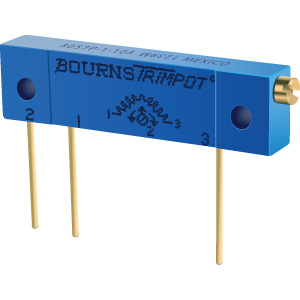

3057		200 cycles		1 watt	Through - hole,	10 to 50 k ohms	100 ohms ENR has Max.		sealed	3057 l 3057	Downloads

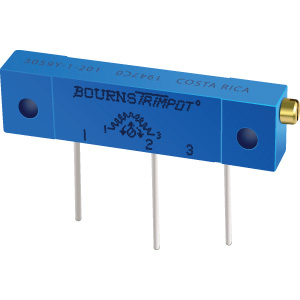

3059		200 cycles		1 watt	Through - hole,	10 ohms to 2 megohms	1% or 2 ohms (whichever is the greater)		sealed	3059 (10 to 250 Ohms) 3059, 250 to 50 k Ohms) 3059 (50 k to 2 m Ohms)	Downloads
3082		200 cycles		0.3 watts	Through - hole,	10 ohms to 2 megohms	3% or 3 ohms (whichever is the greater)		sealed	3082 (10 to 250 ohms) 3082, 250 to 50 k ohms) 3082 (51 k to 500 k ohms) 3082 (500 k to 2 m ohms)	Downloads

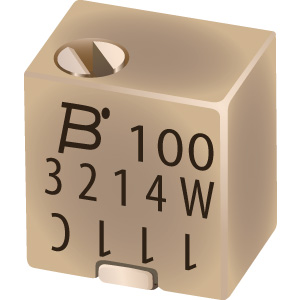

3214		200 cycles		0.25 watts	Surface mount	10 ohms to 2 megohms	3% or 3 ohms (whichever is the greater)		sealed	3214 (10 to 200 ohms) 3214, 250 to 20 k ohms) 3214 (25 k to 2 m ohms)	Downloads

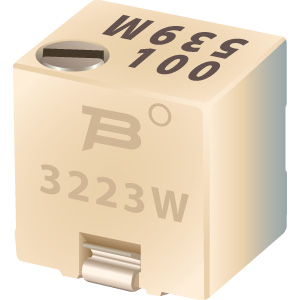

3223		200 cycles	11		Surface mount	10 ohms to 2 megohms	Or 3 ohms Max. 3% (whichever is greater)		sealed	3223 (10 to 200 ohms) 3223, 250 to 50 k ohms) 3223 (51 k to 2 m ohms)	Downloads

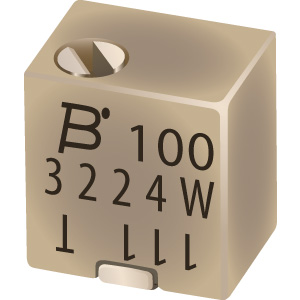

3224		200 cycles	12		Surface mount	10 ohms to 2 megohms	1% or 2 ohms (whichever is the greater)	Plus or minus 100 PPM / ° C	sealed	3224 (10 to 200 ohms) 3224, 250 to 20 k ohms) 3224 (25 k to 2 m ohms)	Downloads

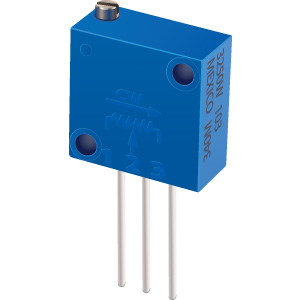

3250		200 cycles		1 watt	Through - hole,	10 to 50 k ohms	100 ohms ENR has Max.		sealed	3250 L 3250 P, W	Downloads

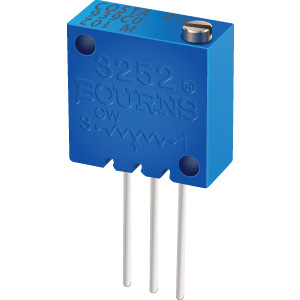

3252		200 cycles		0.75 watts	Through - hole,	10 ohms to 2 megohms	1% or 2 ohms (whichever is the greater)		sealed	3252 (10 to 250 ohms) 3252, 251 to 50 k ohms) 3252 (51 k to 5 m ohms)	Downloads
3260		200 cycles		0.25 watts	Through - hole,	10 to 25 k ohms	100 ohms ENR has Max.		sealed	3260	Downloads

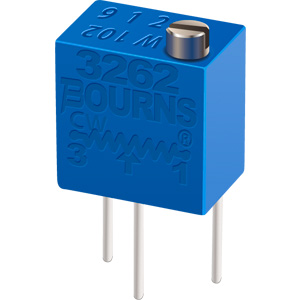

3262		200 cycles		0.25 watts	Through - hole,	10 ohms to 1 megohm	3% or 3 ohms (whichever is the greater)		sealed	3262 (10 k) 10 to 3262 (200) 3262 (10 to 250 ohms) 3262 (50 k to 500 k) 3262 (51 k to 1 m ohms) 3262, 250 to 25 k) 3262, 251 to 50 k ohms) 3262 (501 k to 1 m)	Downloads

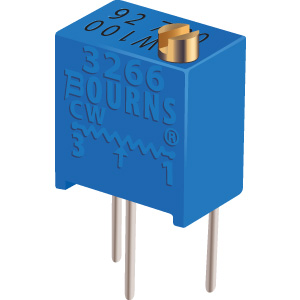

3266		200 cycles		0.25 watts	Through - hole,	10 ohms to 1 megohm	3% or 3 ohms (whichever is the greater)		sealed	3266 (10 k ohms) 3266 (10-250 ohms) 3266 (50 k to 500 k) 3266 (251-25 k ohms) 3266 501 k to 1 m	Downloads

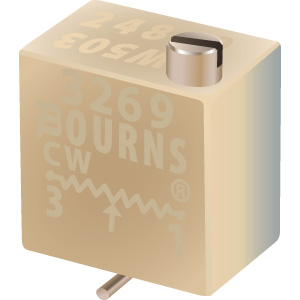

3269		200 cycles		0.25 watts	Surface mount	10 to 1 megohm	3% or 3 ohms (whichever is the greater)		sealed	3269 (10-200) 3269 (201-50 k) 3269 (51 k - 500 k) 3269 (500 k - 1 m)	Downloads

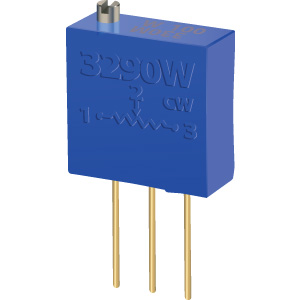

3290		200 cycles		1 watt	Through - hole,	10 ohms to 50 k ohms	100 ohms ENR has Max.		sealed	3290	Downloads

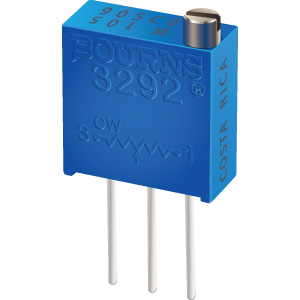

3292		200 cycles		0.5 watts	Through - hole,	10 ohms to 1 megohm	1% or 3 ohms (whichever is the greater)		sealed	3292 (10 to 250 ohms) 3292, 251 to 50 k ohms) 3292 (51 k to 1 m ohms) 3292 (1 m to 2 m ohms)	Downloads

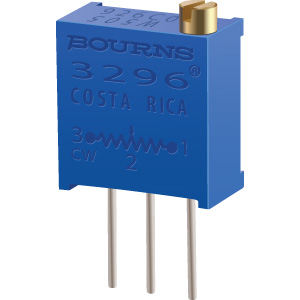

3296		200 cycles		0.5 watts	Through - hole,	10 ohms to 2 megohms	1% or 3 ohms (whichever is the greater)		sealed	3296 (10 to 250 ohms) 3296, 251 to 50 k ohms) 3296 (51 k to 1 m ohms) 3296 (1 m to 2 m ohms)	Downloads

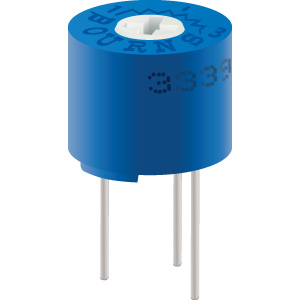

3339		200 cycles	4		Through - hole,	100 ohms to 1 megohm	3% or 3 ohms (whichever is the greater)	Plus or minus 100 PPM / ° C	sealed	3339 (10 to 250 ohms) 3339 (250 to 250 k ohms) 3339 (50 k to 500 k ohms) 3339 (500 k to 1 m ohms)	Downloads
PVG5	PVG5	200 cycles	12	0.25 watts	Surface mount	100 ohms to 2 megohms	1% or 2 ohms (whichever is the greater)	Plus or minus 150 PPM / ° C	sealed	PVG5 (10 to 200 ohms) PVG5 (250 to 25 k ohms) PVG5 (50 k to 2 m ohms)
PV12	PV12	200 cycles	4	0.5 watts	Through - hole,	100 ohms to 1 megohm	3% or 3 ohms (whichever is the greater)	Plus or minus 100 PPM / ° C	sealed	PV12 (10 to 200 ohms) PV12 (250 to 25 k ohms) PV12 (50 k to 500 k ohms) PV12 (501 k to 1 m ohm)
PV36	PV36	200 cycles	25	0.5 watts	Through - hole,	10 ohms to 2 megohms	1% or 3 ohms (whichever is the greater)	+ 100 / + 150 PPM / ° C	sealed	PV36 (10 to 250 ohms) PV36 (251 to 50 k ohms) PV36 (51 k to 1 m ohm) PV36 (1.01 M to 2 M ohms)
PV37	PV37	200 cycles	12	0.25 watts	Through - hole,	10 ohms to 1 megohm	3% or 3 ohms (whichever is the greater)	Plus or minus 150 PPM / ° C	sealed	PV37 (10 to 250 ohms) PV37 (10 k ohms) PV37 (251 to 25 k ohms) PV37 (51 k to 500 k ohms) PV37 (501 k to 1 m ohm)

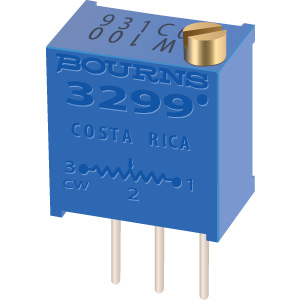

3299		200 cycles	25	0.5 watts	Through - hole,	10 to 2 megohms	3% or 3 ohms (whichever is the greater)	Plus or minus 100 PPM / ° C	sealed	3299 (10 to 250 ohms) 3299, 250 to 50 k ohms) 3299 (51 k to 1 m ohms) 3299 (1 m to 2 m ohms)	Downloads
